MICROPROCESSOR UV-VIS SPECTROPHOTOMETER - MODEL 1371

Features:

Printer Interface
Covers 190 to 1000 nm
4 Position Cuvette Holder
16 X 2 Line LCD Data Display
4 Digit Wavelength Display
RS - 232C Computer Interface
µP based wavelength selection

Specification:

SPECTRAL
WAVELENGTH RANGE	190 to 1000 nm
SPECTRAL BANDWIDTH	2 nm
ACCURACY	± 0.5 nm
READABILITY	± 0.3 nm
READ-OUT (WAVELENGTH)	4 digit 7 segment LED
Resolution
PHOTOMETRIC
PHOTOMETRIC RANGE	% T : 0 to 100% Abs. : 0 to 1.999 Conc. : 0 to 1.999 K Factor : 0 to 1.999
ACCURACY	± 0.005 Abs at 1.0 Abs ± 0.010 Abs at 1.5 Abs
STRAY LIGHT	Less than 0.1% at 320 nm
READABILITY	± 1 count
DATA READOUT	16 X 2 Line LCD back lit display
KEY BOARD	8 Keys, soft touch membrane type
DATA STORAGE	Upto 100 Samples (0-99)
PRINTER INTERFACE	Printer Interface for any centronics DotMatrix Printer
SERIAL INTERFACE	RS 232C interface (Optional)
LIGHT SOURCE	(a) Tungsten – Halogen Lamp (b) Deuterium Lamp (D2)
DETECTOR	Wide range silicon Photodiode
OPTICS	Complete mirror optics with resolution 1200 grooves / mm grating, Czerny turner mount
SAMPLE HOLDER	4 Position adjustable sample holder
POWER	230 V ± 10% 50 Hz AC
DIMENSIONS	550 X 405 X 130 mm (lxbxh) Approx.
WEIGHT	25 Kg. (Approx.)
ACCESSORIES	Quartz cuvetts set of 2 Dust Cover *Plastic cuvetts set of 4, Operation Manual

This product was added to our catalog on Thursday, February 28, 2008

Add to my selection | Enquire All Selected Products (0 Products)

Product Images

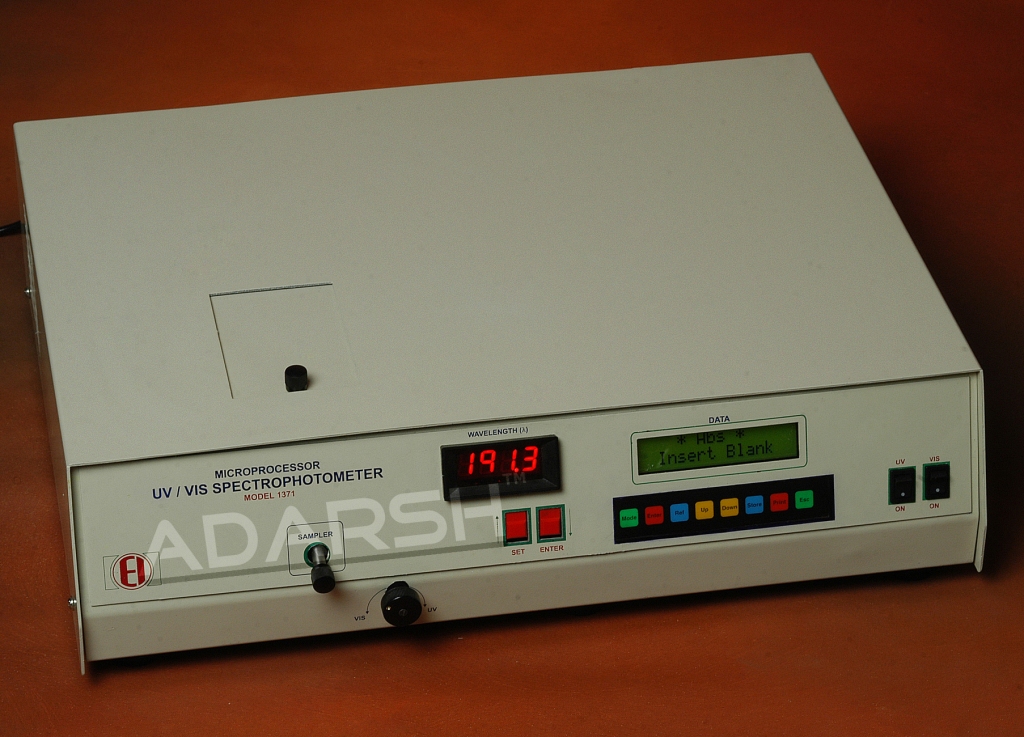

Spectrophotometer1371
